M&S safety valves

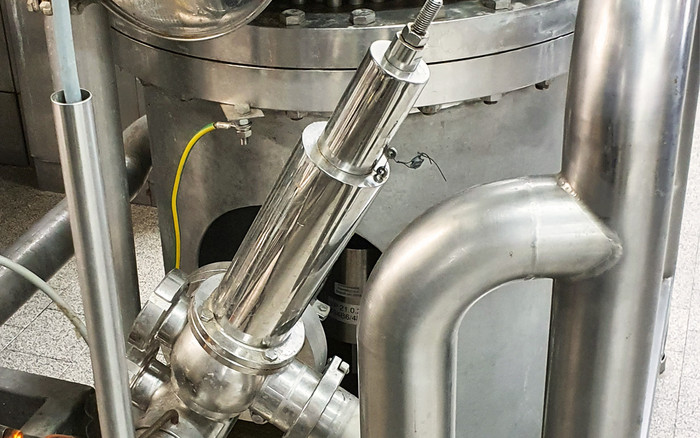

M&S safety valves are TÜV-certified fittings that are used to protect hygienic pressure-bearing systems, such as pressure vessels or piping systems, in the event of an impermissible pressure increase. When the preset maximum operating pressure is reached, the valve opens, thereby reducing the system pressure. Once the excess pressure has been reduced, the valve closes and the system can continue to operate safely.

M&S safety valves comply with the requirements of the Pressure Equipment Directive (PED 2014/68/EU) as safety devices for pressure limitation or pressure relief in production facilities.

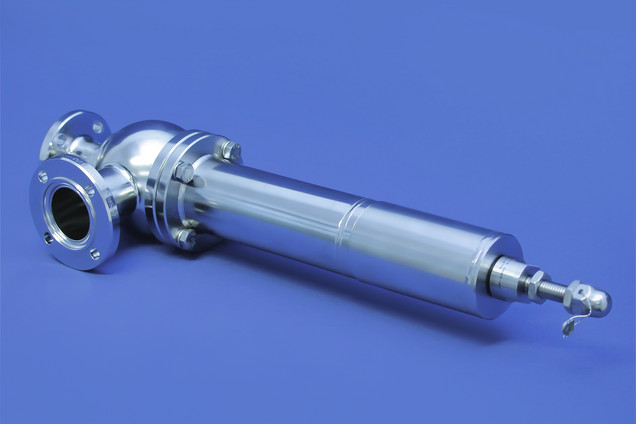

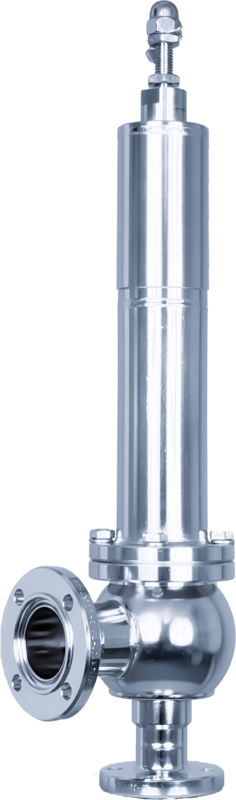

HyCom Safety Valve

Features

  • Hygienic design with optimal cleanability
  • Flow-optimized, dead space-free spherical housing
  • Excellent cleanability and sterilizability (CIP/SIP)
  • Manual seat cleaning, optional pneumatic lifting
  • Constant set pressure
  • TÜV component tested
Special equipment
  • Pneumatic lifting
  • Valve heater
  • Position feedback
Special version
  • Discharge with enlarged outlet

Usage

  • For non-toxic gases, vapors, and neutral, non-adhesive liquids (Fluid Group II)
109010508377

Sizes

DN 25 – 80



Pressure adjustment range

0,5 – 10 bar


Materials

316L – 1.4404

Seals

EPDM
(HyCom safety valve also available in FKM)


Surfaces

In contact with product
Ra ≤ 0,8 µm
Not in contact with product
Ra ≤ 1,6 µm


Finish = lathe clean
